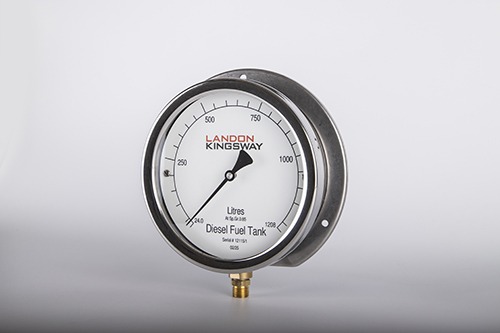

The Landon Kingsway Tank Contents Gauge TCG Series are manufactured and calibrated to each individual oil storage tank to ensure the system can maintain high accuracy and a long service life.
The Landon Kingsway Tank Contents Gauge TCG are manufactured from stainless steel and are of the highest quality.
The standard system will comprise of three components, the hydrostatic tank sensor, capillary tube and the hydrostatic contents level gauge. 4-20mA transducers and relay switches can be incorporated to allow full BMS system integration.
Each hydrostatic contents gauge by Landon Kingsway is manufactured and calibrated to each individual oil storage tank to ensure the system can maintain high accuracy and a long service life.
The Landon Kingsway Contents Gauge System requires no external power source. Indication of tank contents can be in any units of mass, volume or depth. Tank sensors are available in mild steel, stainless steel.
Each system is tailor made to each user’s requirements, with data being prepared from the individual tank questionnaire.
Afriso Tankmate
TCM Tankmate 160
Gauge Sizes Diameter : 100, 160, 250mm
Calibration : Litres / Cubic Metres / Tonnes
Gauge Material: Stainless steel
Capillary: 30m Nylon
Sensor Material: Stainless steel diaphragm
Sensor Dimensions: Ø130mm x 40mm
Dual scale calibration (Litres / Gallons)
100mm, 160 or 250mm dial face
LK/10 4-20mAmp transmitter for BMS
Relay Outputs
